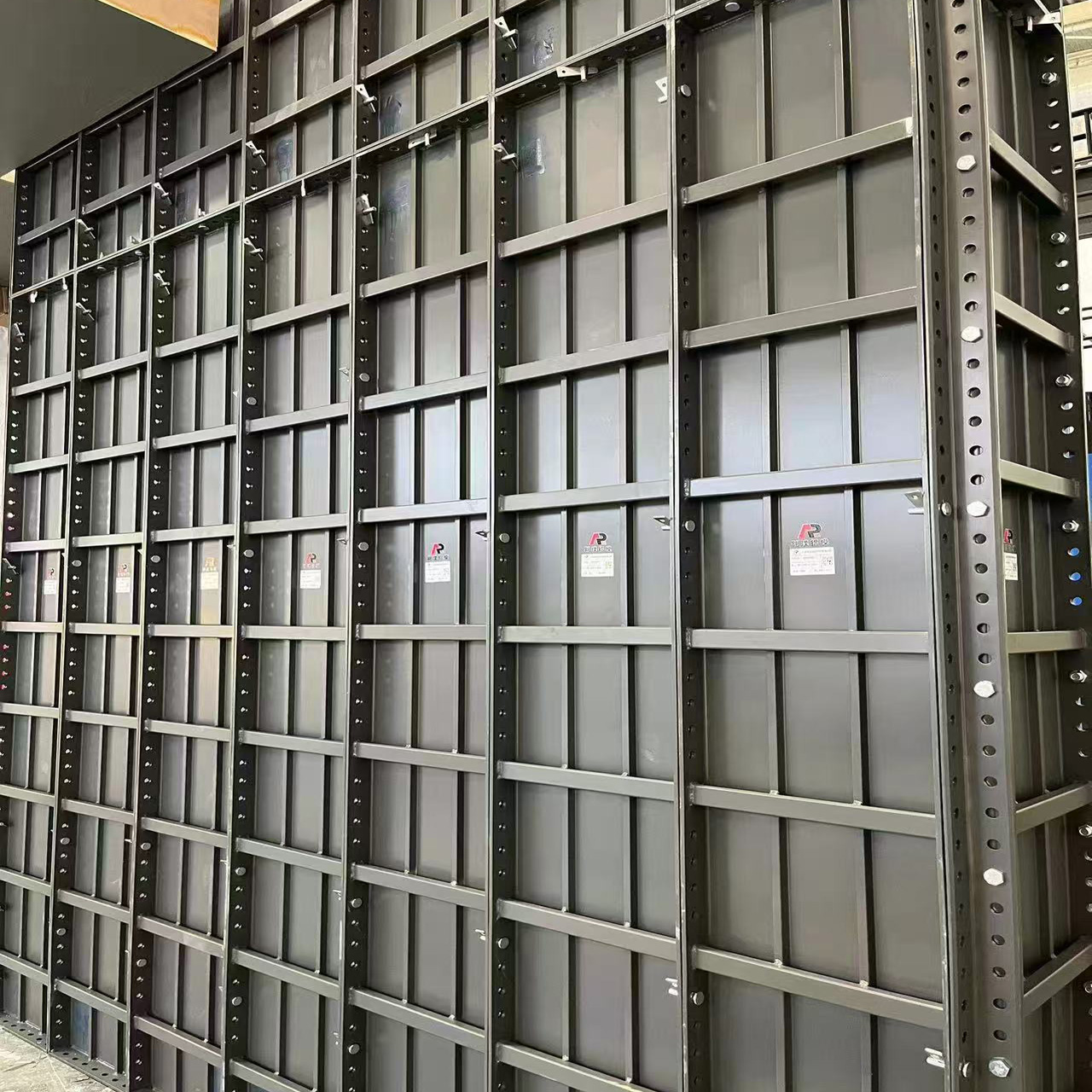

Archipower Aluminum Alloy Wall Formwork is an innovative building system, comprising wall panels and accessories suitable for rapidly and economically constructing any vertical concrete shapes in buildings. The lightweight and high-quality materials of the Archipower system allow for manual or crane handling, delivering exceptional performance.

These new materials and technological innovations achieve an optimal balance between lightness and strength. Thanks to these robust, lightweight, and convenient accessories, the system has become the ideal solution for foundations, water storage tanks, low retaining walls, and parapet walls.

Made from 6061-T6 aluminum alloy, Archipower wall formwork features low density and high strength, providing superior mechanical performance under the same load capacity and contributing to enhanced construction quality. Compared to traditional formwork systems, the aluminum alloy wall formwork system offers significant advantages.

Its features include:

• Short Construction Cycle：Quick-connect accessories enable assembly-line construction, reducing installation time and cost, accelerating progress, and saving management expenses.

• High Stability：The low density and high strength of aluminum alloy offer excellent mechanical performance under load, ensuring construction quality.

• High Precision：After demolding, the concrete surface is smooth and even, achieving fair-faced concrete standards without the need for plastering, thereby saving on cleaning costs.

• Low Finished Cost：The formwork can be reused multiple times and has high scrap recycling value, further reducing overall costs.

• Strong Flexibility：Customizable panel sizes adapt to different structures (walls, columns, slabs, and foundations) with varying shapes.

Size   P(W*H)

Main Components

• Adjustable braces

• Custom aluminum panels

• Connectors: pins and wedges, hollow profiles, tie rods or flat ties, steel props

Advantages

• High Strength & Durability

High-strength aluminum alloy provides superior load capacity and corrosion resistance, ensuring reliable performance in demanding environments.

• Rapid Installation & Precision


Modular design enables fast assembly with exact tolerances, reducing labor by up to 40% while delivering fair-faced concrete quality.

• Sustainability & Cost Efficiency

300+ reuse cycles and 90% recyclability minimize waste and offer long-term cost advantages through repeated applications.

• Superior Finish & Value


Produces ready-to-finish concrete surfaces, eliminating plastering costs and delivering excellent ROI despite higher initial investment.

Archipower Wall Formwork combines technical excellence with economic benefits through advanced engineering and sustainable design.

Material : 6061-T6 aluminum alloy

Process : Extruded profiles

Material Thickness : 4mm

Types : Wall formwork, column formwork, beam formwork, slab formwork, etc.

Weight : 21-23kg/m²

Surface Finish : Mill finish or spray coating

Reuse Cycles : ≥300

Shape : Customizable

Dimensions : Customizable

Fabrication Processes : Drilling, bending, welding, precision cutting, punching, etc.

Standards : EN755-9, GB/T 6892-2015, GB 5237.1-2008, JGJ 386-2016

Packaging : Standard pallets with stretch film, or customized according to your requirements.

Application

Thanks to its unique advantages, the aluminum alloy wall formwork system is widely used in various construction scenarios, such as：

• Foundations

• Single-sided walls

• Double-sided walls

• Shear walls

• Load-bearing walls

• Retaining walls

Archipower Wall Formwork delivers optimal performance across diverse construction environments, supporting both standard and specialized architectural requirements through its adaptable design and proven engineering solutions.
